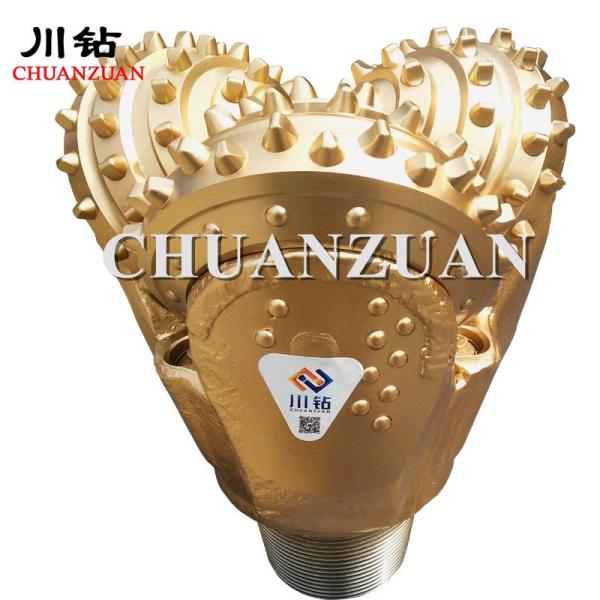

Abrasion Resistance Blue Tci Drill Bit 15 1/2 Inch For Hard Gypsum , Marble

Hebei Yichuan Drilling Equipment Manufacturing Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Abrasion Resistance Blue Tci Drill Bit 15 1/2 Inch For Hard Gypsum , Marble

  • 1
  • 2
  • 3

Brand Name : chuanzuan

Model Number : IADC 537

Certification : CE

Place of Origin : china

MOQ : 1

Price : Negotiable

Supply Ability : 100

Packaging Details : Fumigation wooden box

size : 15 1/2mm tci tricone bit

IADC Code : 537

Connection : 7 5/8"API reg pin

Nozzle Qty : 3NZ

Make up Torque(KN.m) : 16.3~21.7

Rotary Speed(rpm) : 80~40

Formation : Hard formation with high compressive strength ,such as limestone,sandstone,dolomite,hard gypsum,marble,etc.

Bearing type : Sealed and non-sealed bearing

Machine Type : water well drilling

Color : blue

Contact Now

15 1/2INCH TCI ROCK BIT/tci tricone bit/rock auger bits buy direct from china

Abrasion Resistance Blue Tci Drill Bit 15 1/2 Inch For Hard Gypsum , Marble Basical Parameter
Bit Size 15 1/2mm
IADC Code 537G
Connection 7 5/8"API reg pin
Nozzle Qty 3NZ
Make up Torque(KN.m) 16.3~21.7
Operating Parameter
Rotary Speed(rpm) 80~40
Weight on Bit(KN/MM) 0.5~1.2
Formation Hard formation with high compressive strength ,such as limestone,sandstone,dolomite,hard gypsum,marble,etc.

Cutting Structure
The wear-resistance of the teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for the steel tooth bit.The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit

Gauge Structure
Multiple gague protection with gauge trimmers on the heel and gauge inserts on the gauge surface of the cone,tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capacity and bearing life.

Bearing Structure
High precision journal bearing with two thrust faces,Balls lock the cone.Hardfaced head bearing surface.Cone bearing inlaid with friction-reducing alloy and then silver-plated.Abrasion resistance and seizure of the bearing are improved.and suitable for high rotary speed

Seal and Lubrication
The advanced metal seal package consists of two metal seals and two elastic energizers.Compressed energizers ensure good contact being kept on two sealing surfaces of metal rings by elastic force,and achieves the bearing seal.In the drilling,metal seals are relatively dynamic,and the energizers are static.This will improve the reliability and durability of bearing seal.The pressure compensator system and advanced grease can greatly increase the lubricating reliability.

Abrasion Resistance Blue Tci Drill Bit 15 1/2 Inch For Hard Gypsum , MarbleAbrasion Resistance Blue Tci Drill Bit 15 1/2 Inch For Hard Gypsum , MarbleAbrasion Resistance Blue Tci Drill Bit 15 1/2 Inch For Hard Gypsum , Marble

Our Services


1 We supply good quality goods at competitive price

2 We not only have our own design but also accept customization

3 Fast and on time delivery

4 Every bit has it's quality assurance

5 Contact us anytime if you have any question with bits.

6 24 hours on time reply

Abrasion Resistance Blue Tci Drill Bit 15 1/2 Inch For Hard Gypsum , Marble

FAQ


As a manufacturer loacted in Hejian City, Hebei Province, China, we have been in this industry for more than 20 years.

We have many clients from all over the world and we serve our clients with not only reasonable price, but also reliable quality. We cherish every client and we're thankful for our clients' trust. So please believe us, we will supply you with the most genuine goods.

1 Q: Are you manufacturer?

A: Yes and we have been manufacturing drill bits for more than 20 years.

2 Q: Where are you located in?

A: We are located in Hejian City Cangzhou City Hebei China

3 Q:What's your main product?

A: Our main products include TCI tricone bit, Steel tooth tricone bit, sigle cone bit, HDD HOLE OPPENER and so on. For some products such as drag bits, we can also produce as per your demand.

4 Q: What's your MOQ?

A: Our MOQ is 5 pieces, but if you just want one sample for testing quality, it's also acceptable for us.

5 Q: What's the lead time?

A: We will delivery goods within 7 days if we have goods in stock; for other circumstances, we will negotiate with you.

6 Q: Do you sell used drill bit ?

A: Yes we do and price is very competitive. Welcome to inquire anytime.

For more information, please feel free to contact us.
